📜 강의 정리

* Cousera 강의 중 Andrew Ng 교수님의 Deep Learning Specialization 강의를 공부하고 정리한 내용입니다.

* 영어 공부를 하려고 영어로 강의를 정리하고 있습니다. 틀린 부분이나 어색한 부분이 있다면 댓글로 알려주시거나 넘어가주시면 감사하겠습니다

---

Logistic Regression as a Neural Network



1. Binary Classification

Logistic regression is an algorithm for binary classification.

Binary classification is to get output y in (0, 1) with input image x. For example, you might have an input image and

want to output a label to recognize this image as either being a cat, in which case you output 1, or not-cat in which case you output 0.

There is a natation guide in the lecture.

2. Logistic Regression

Logistic Regression is a learning algorithm that you use when the output labels Y in a supervised learning problem are all either zero or one, so for binary classification problems.

$$
\text { Given }\left\{\left(x^{(1)}, y^{(1)}\right), \ldots,\left(x^{(m)}, y^{(m)}\right)\right\}, \text { want } \hat{y}^{(i)} \approx y^{(i)}
$$ we generate the output Y hat as follows.

$$
\hat{y}=\sigma\left(w^{T} x+b\right) \text { , where } \sigma(z)=\frac{1}{1+e^{-z}}
$$

Sigmoid function makes Y hat be in [0, 1]

3. Logistic Regression Cost Function

$$
\hat{y}^{(i)}=\sigma\left(w^{T} x^{(i)}+b\right) \text { , where } \sigma(z^{(i)})=\frac{1}{1+e^{-z^{(i)}}}
$$

$$z^{(i)}=w^{T} x^{(i)}+b$$

$^{(i)}$ means i-th training example in dataset X

출처. deep learning specialization - Andrew Ng

• Loss function
  • calculate the difference between y hat and the true label
  • Loss func1. $\mathscr{L}=(y-\hat{y})^{2}$
  • Loss func2. $\mathscr{L}=-(y \log (\hat{y})+(1-y) \log (1-\hat{y}))$
  • prefer func2 to func 1 because of opimization (Convex function has one global optimal, but non convex function has lots of local optimals)
• Cost function
  • The cost function J, which is applied to your parameters W and b, is average of the loss function applied to each of the training examples
  • $J({w}, {b})=\mathscr{L}(y-\hat{y})^{2}=-\frac{1}{m}\left[\sum_{i=1}^{m} y^{(i)} \log (\hat{y}^{(i)})+(1-y^{(i)}) \log (1-\hat{y}^{(i)}))\right]$

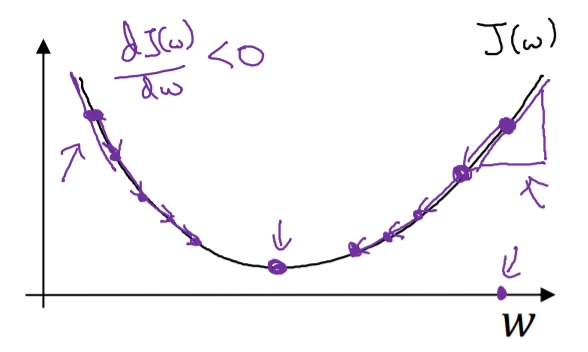

3. Gradient Descent

We want to find w, b to minimize J(w, b).

J is convex function and has one global optimal : $\mathscr{L}=-(y \log (\hat{y})+(1-y) \log (1-\hat{y}))$

w and b take a step in the steepest downhill direction to find the optimal point.

• w := w - α*dw
• b := b - α*db

출처 Deeplearning specialization - Andrew Ng



4. Derivatives

The slope(gradient, derivative) of linear function is same at all the point on the graph.

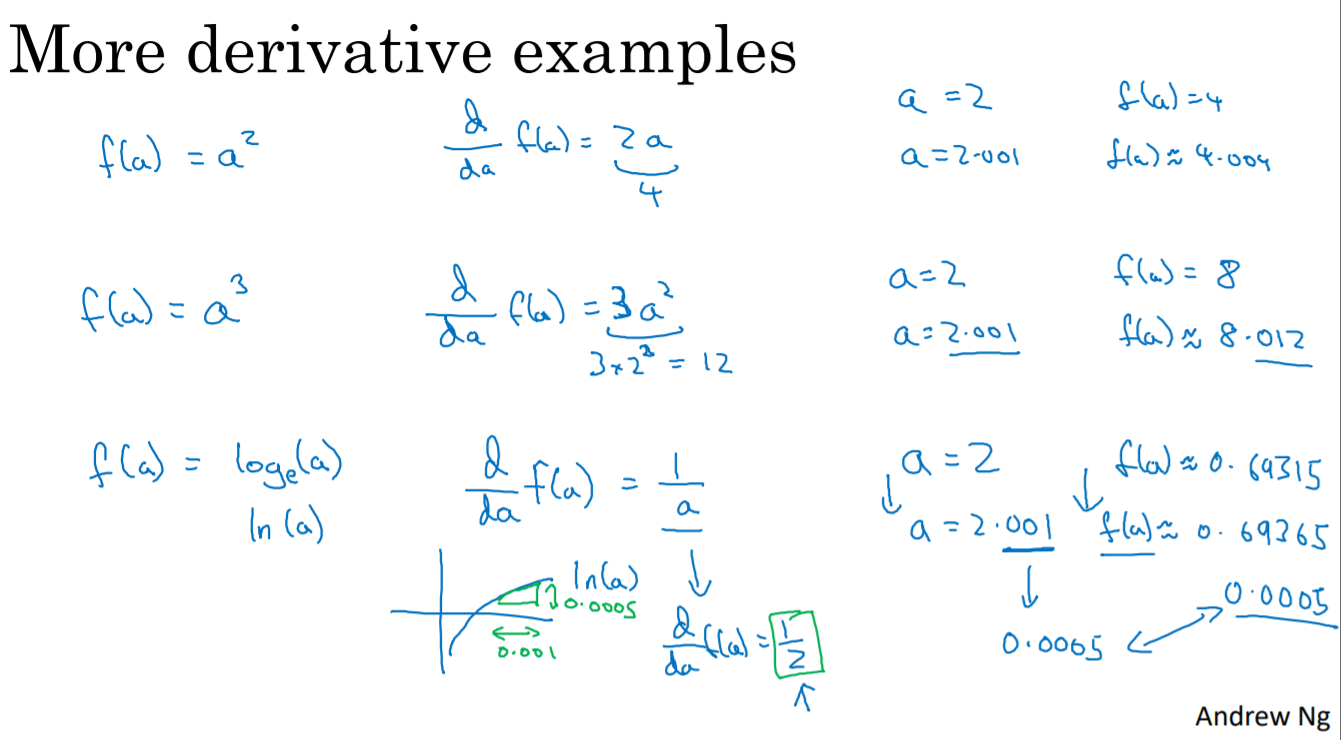

5. More Derivative Examples

We can calculate derivative by derivative calculus and numerical substitution.

도함수를 구해서 푸는 방법과 x와 x + 0.001의 충분히 x와 가까운 수의 함수값을 구해서 비를 구하는 방법이 있다.

출처 Deeplearning specialization - Andrew Ng



6. Computation Graph

The computations of a neural network are organized in terms of a forward pass, in which we compute the ouput of the NN, and followed by a backward pass(backpropagation) which we use to compute gradients.

The comptuation graph organizes a computations with the blow arrow, left-to-right computation, and the red arrow, right-to-left computation.

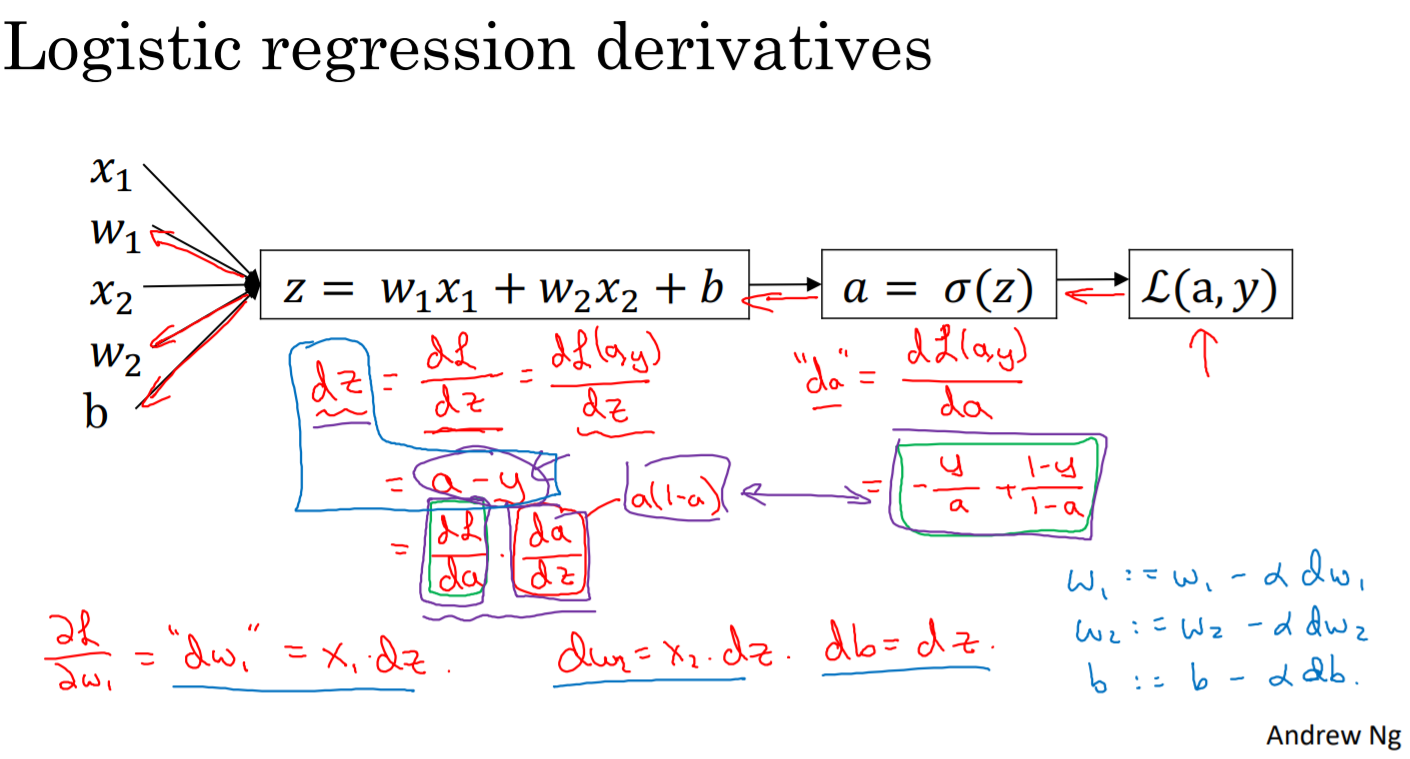

8. Logistic Regression Gradient Descent

I've computed the derivatives of the cost function J with respect to each parameters w_1, w_2 and b

출처 Deep Learning Specialization - Andrew Ng

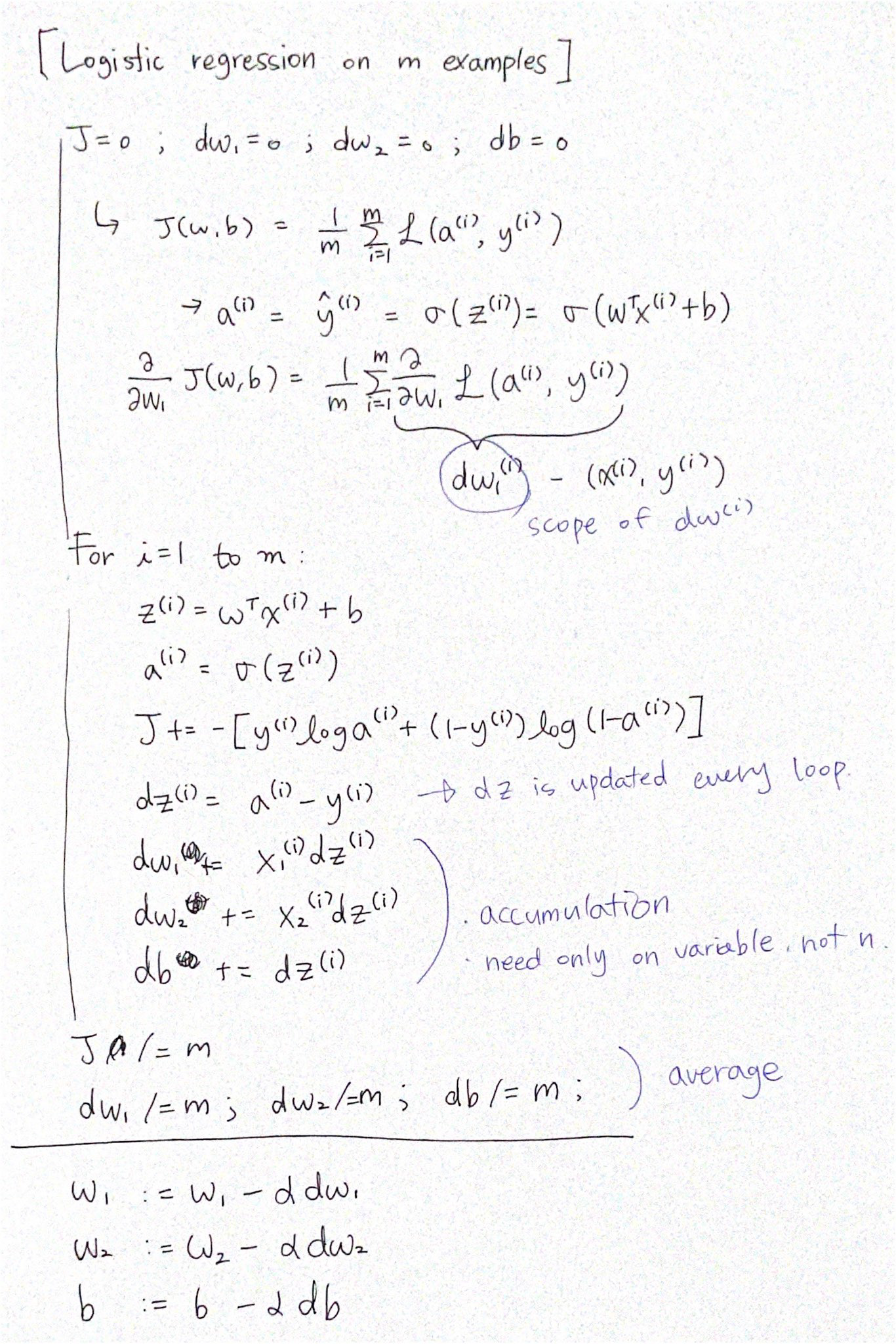

9. Gradient Descent on m examples

Figure 1

The value of dw in the code is cumulative, so there is only one dw variale.

But this method need two for loops, so it takes time too much. First loop is "i to m" loop, second loop is used when you compute dw_1, dw_2, db. If we vectorize variables w_n, we can use only one for loop.

---

Python and Vectorization



1. Vectorization

Vectorization is basically the art of getting rid of explicit for loops in code.

np.dot(w, x) : this code makes w transpose and calculate dot product of it(w_t) and x.

It is more than 300 times faster than explicit for loop, because it uses parallelization instructions.

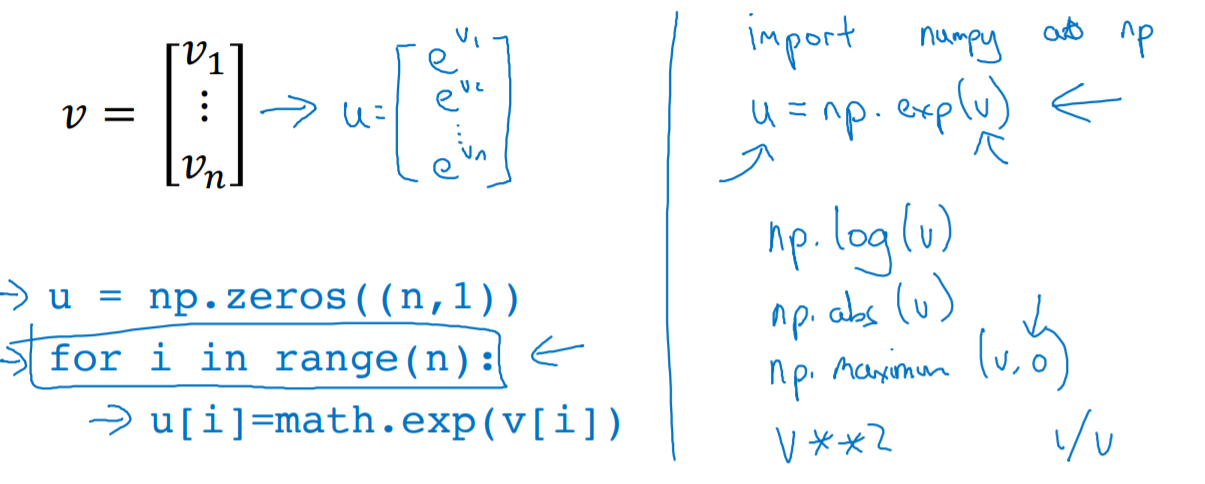

2. More Vectorization Examples

• Neural Network programming guideline
  • Whenever possible, avoid explicit for-loops.

  •

    출처 Deep Learning Specialization - Andrew Ng

    Numpy library provides lots of build-in functions, so use them. It makes code simpler and faster.

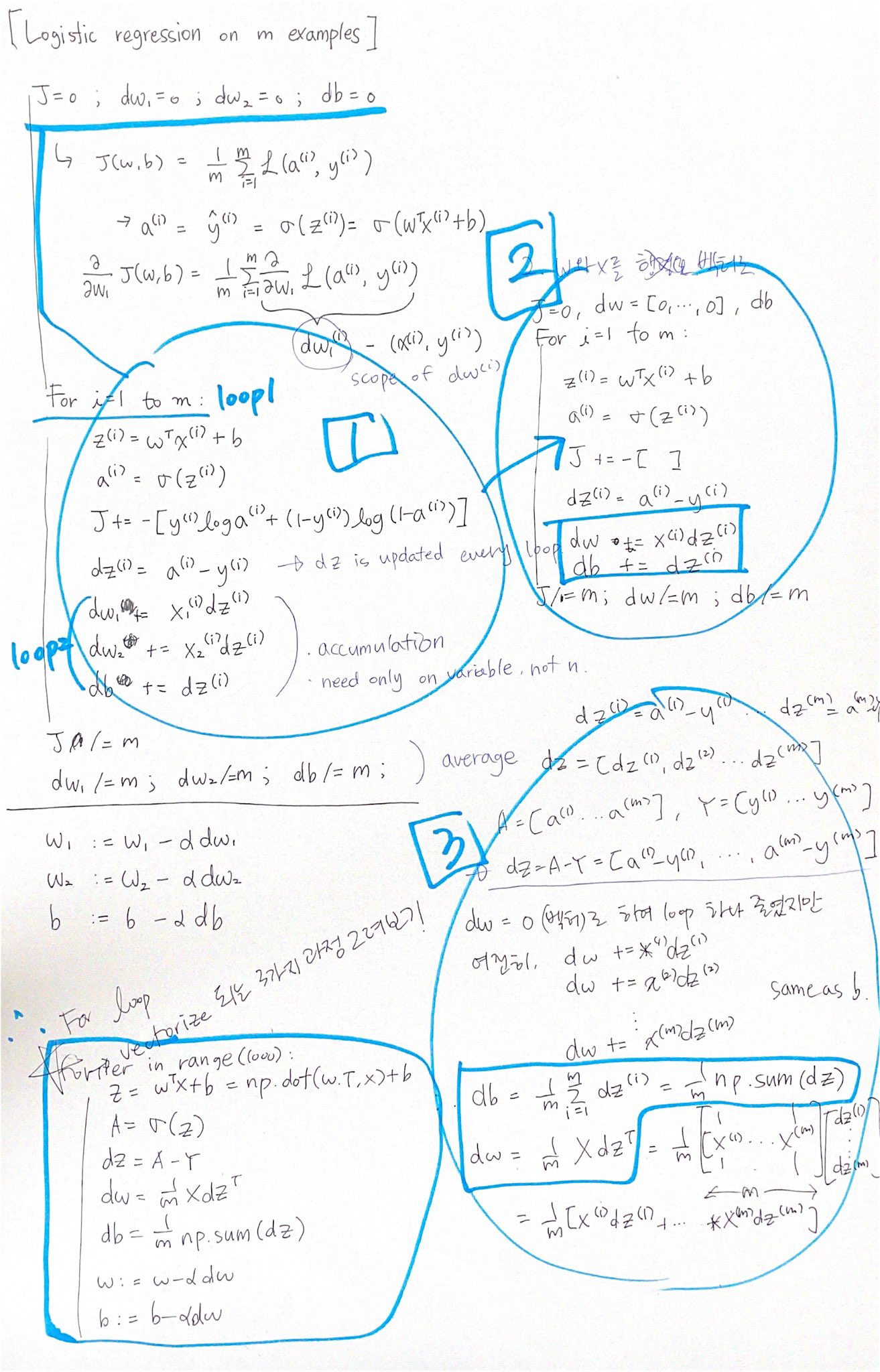

• How to get rid of for loop in Figure 1 (in Gradient Descent on m examples)
  • There are n repeats for calculating dw_1, dw_2, ..., dw_n. If dw_1, ..., dw_n are vectorized to one vector, the inner for loop can be replaced with dw += x_i * dz_i.

  •

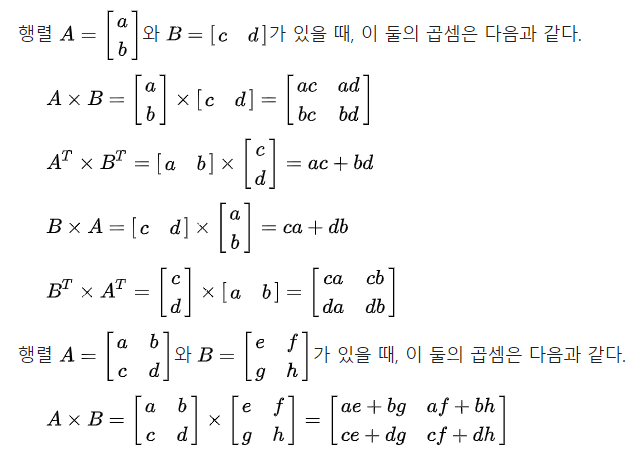

    행렬곱 예시

3. Vectorizing Logistic Regression

Z = np.dot(W_t, X) + b

X.shape = (nx, m), W.shape = (nx, m), b.shape = (1, m)

4. Vectorizing Logistic Regression's Gradient Output

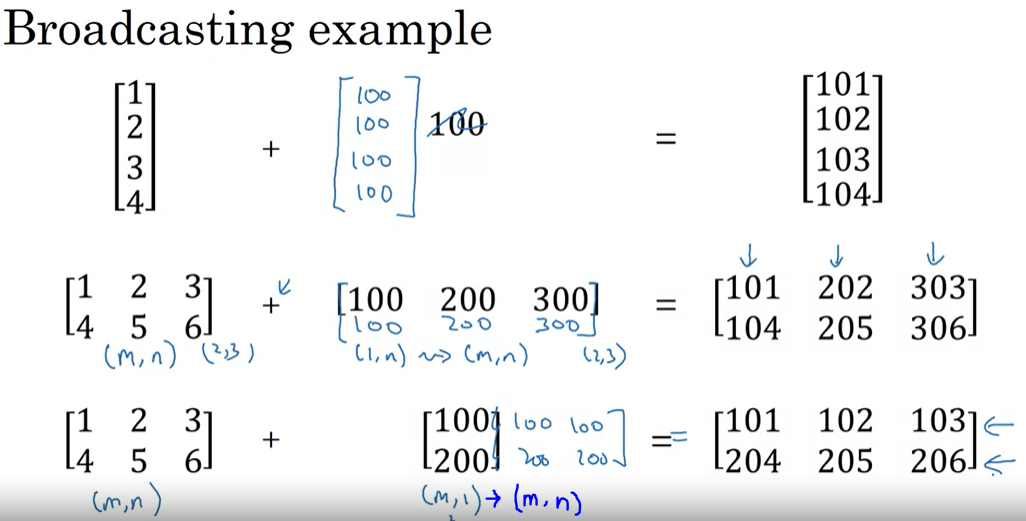

5. Broadcasting in Python

* axis=0 means to sum vertically, axis=1 means to sum horizontally

How can you divide a three by four matrix by a one by four matrix? By broadcasting!

출처 Deep learning Specialization - Anrew Ng

General principle is ..

• 1. If you have an (m,n) matrix and you add(+) or subtract(-) or multiply(*) or divide(/) with a (1,n) matrix, then this will copy it n times into an (m,n) matrix.
• 2. And then apply the addition, subtraction, and multiplication of division element wise.



6. A Note on Python/Numpy Vectors

"np.random.randn(5)" creates five random Gaussian variables - its shape is (5, ) called rank 1 array. More clear respresentation is "np.random.rand(5, 1)". It generate column vector, and have a transpose which shape is (1, 5).

check the shape of arrays by assert(a.shape == (5,1))
